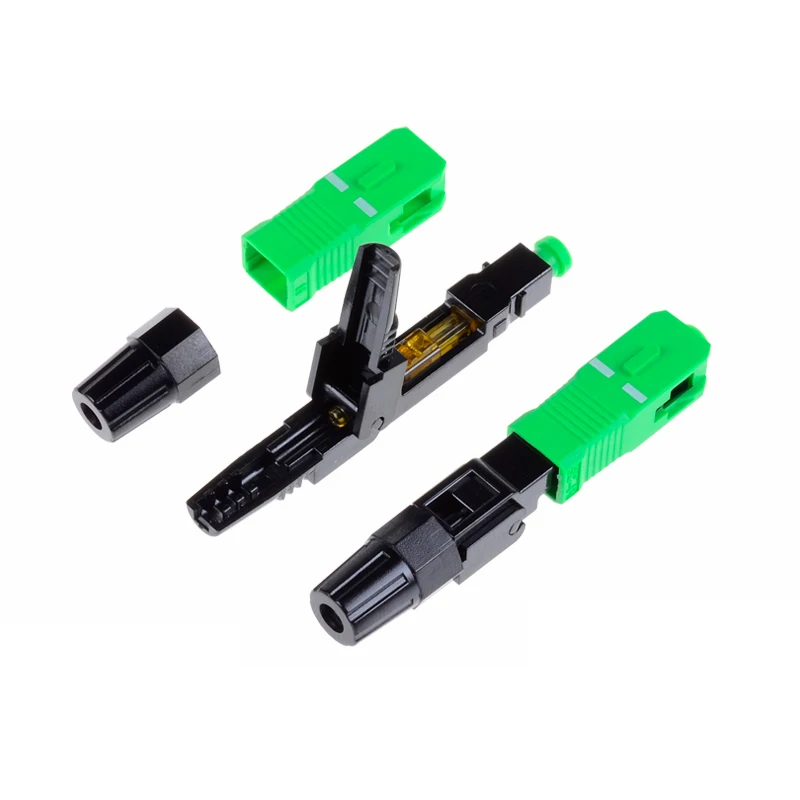

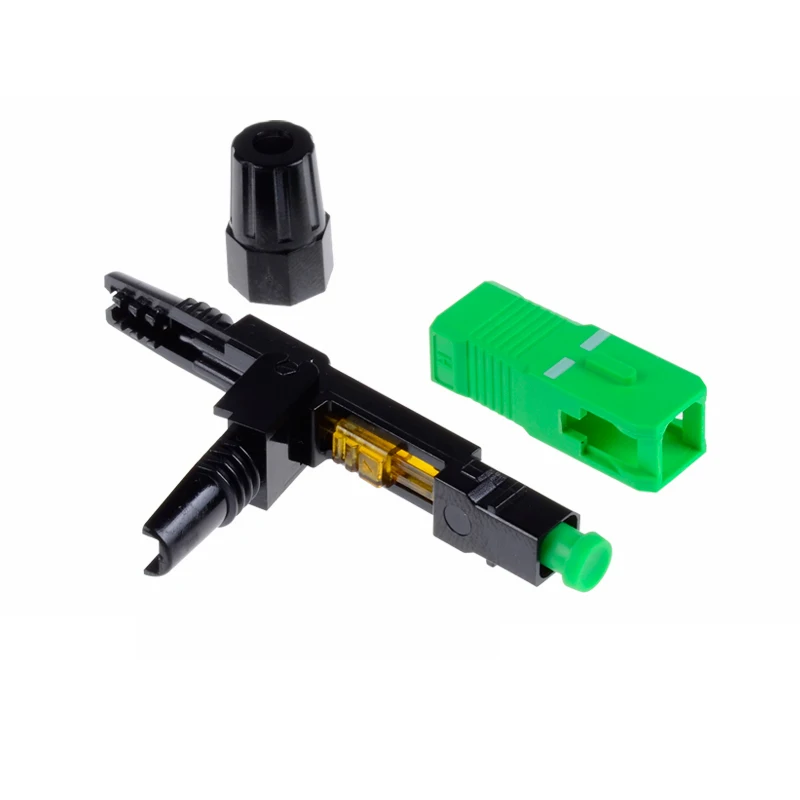

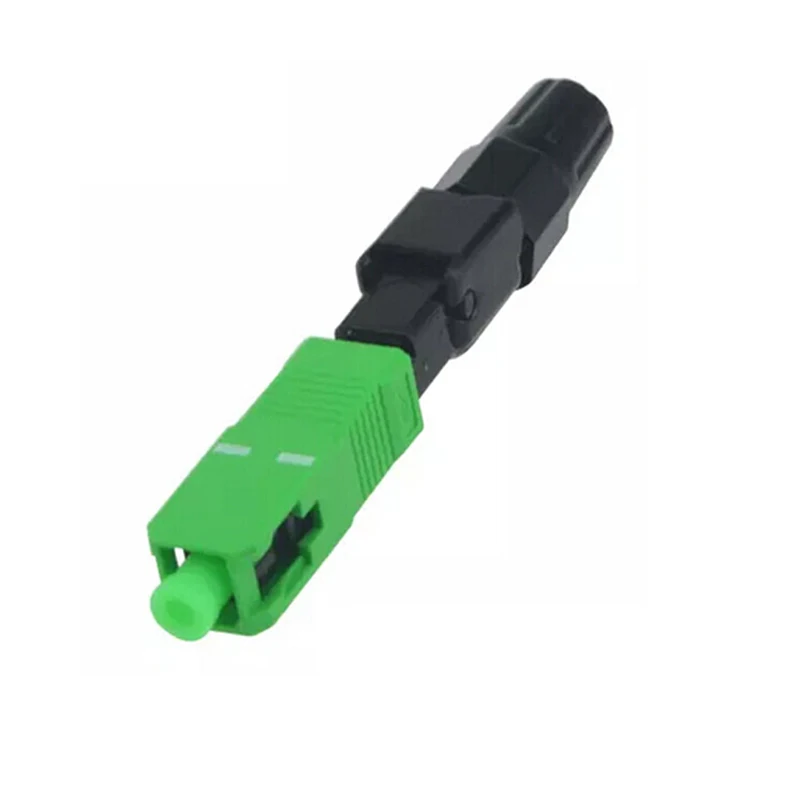

High Quality 50PCS SC APC fiber optic SC APC Single-mode Fast connector SC APC FTTH Fiber Optic quick Connector Free shipping
$25.99
Only logged in customers who have purchased this product may leave a review.
- Model Number: SC/UPC
- Connector Type: SC/APC
- Fiber Type: Single Mode
- Brand Name: BLHLI
- Model Number: SC APC FTTH Fiber Optic Fast Connector
- Quantity: 50 PCS
- Splicing Type: SM, MM, DS, NZ-DS
- Place of origin: China
- Diameter: 0.9mm, 2.0mm, 3.0mm, Others
- Loss: < 0.5dB
- Durability: 500 Times
- Application: FTTH FTTB FTTX Network
- Mode: single mode, multimode
- Storage Temperature: 25 ~ 85
- Using temperature: -40~ 75°C
50PCS/box SC APC fiber optic SC APC Single-mode Fast connector SC APC FTTH Fiber Optic quick Connector Free shipping
ITEM |
Technical Parameters |
Applicable for |
Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
Optical fiber diameter |
SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
Tight buffer diameter |
250μm |
Fiber mode |
Single mode |
Operation time |
About 100s(no fiber cut) |
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
Return loss |
> 50db(PC), > 55db(UPC), > 65db(APC) |
Fastening strength of naked fiber |
>5 N |
Fastening strength of naked fiber holder |
>10 N |
Tensile strength |
>50 N |
Using temperature |
-40~+75°C |
On-line tensile strength (20 N) |
IL ≤ 0.5dB RL ≤ 5dB |
Mechanical durability (500 times) |
IL ≤ 0.5dB RL ≤ 5dB |
Drop-off test (drop-off height 4m,once per direction, totally 3 times) |
IL ≤ 0. |
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
