Eloik ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra Optica fiber optic welder
Eloik ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra Optica fiber optic welder - Image 2
Eloik ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra Optica fiber optic welder - Image 3
Eloik ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra Optica fiber optic welder - Image 4
Eloik ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra Optica fiber optic welder - Image 5
Eloik ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra Optica fiber optic welder - Image 6

Eloik ALK-88 Fiber Optic Splicing Machine Fusion Splicer Fusionadora de Fibra Optica fiber optic welder

$1908.000

Out of stock

Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
SKU: 1005001621581541 Categories: , ,
Ominy Market
Ominy Market
Promotions
$10.000 OFF
$100.000 OFF
$80.000 OFF
$60.000 OFF
$40.000 OFF
$20.000 OFF
$5.000 OFF
Promotions
10$ OFF
Minimum spend 50$ Maximum spend $
Unlimited time
Apply Coupon
100$ OFF
Minimum spend 1376$ Maximum spend $
Unlimited time
Apply Coupon
80$ OFF
Minimum spend 744$ Maximum spend $
Unlimited time
Apply Coupon
60$ OFF
Minimum spend 620$ Maximum spend $
Unlimited time
Apply Coupon
40$ OFF
Minimum spend 372$ Maximum spend $
Unlimited time
Apply Coupon
20$ OFF
Minimum spend 74$ Maximum spend $
Unlimited time
Apply Coupon
5$ OFF
Minimum spend 15$ Maximum spend $
Unlimited time
Apply Coupon
Report Abuse

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

  • Brand Name: Joinwit
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Length: 1m
  • Compatible: Ubiquiti
  • Compatible: Transition Networks
  • Compatible: Customized Brands
  • Compatible: TP-link
  • Fiber Type: Single Mode
  • Connector Type: Hybrid
  • Size: 20cmx20cmx20cm
  • Model Number: ALK-88
  • Heating Time:: 14 seconds
  • Welding time:: 7 seconds

ntroduction:

Eloik ALK-88 Fusion Splicer (portable) Fiber Optic Equipment is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology. It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed

Features:



1. Hardness: Titanium alloy body, and rubber protection structure for shock, water and dust resistance, connection points reinforced with silica gel.

2. Fast: 7s fast splicing , 14s fast heating, support continuous heating , average efficiency improve 2-3times.

3. Long lifetime: 1 group batteries, 200——260 times splicing and heating, no memory effect Lithium Batteries, the fiber cleaver has 16 blade,

each blade for 3,000 times cutting, total for 48,000 times cutting.

4. Convenience: Convenient for maintenance

5. Ten languages: Chinese, English, Russian, Portuguese, French, Spanish,Italian,Polish,Thai language

6. Online software upgrade and technical support.

Specification:

Applicable fiber Type SM, MM, DS, NZDS BIF/UBIF
Applicable fiber Count Single
Applicable diber diameter Cladding diameter 90~150μm, coating diameter 200~1000μm
Splice Mode Stored 40 groups, 80 groups of user-defined
Average splice loss 0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS)
Return Loss More than 60dB
Connecting time 7sec (typical time)
Splice loss evaluation Have
Tensile test 2N
Screen 4.3inch color LCD
Optical magnification X/Y:115 times, X,or Y: 230 times
Power Supply 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
Battery

Typical Operating 220(splice/ heat shrink/thermal stripping) on a single charge 3h,

can be resued 500 times

Maximum storage 5000 set of the latest record storage
Data interface USB2.0
Operating environment Altitude 0~4000m, 0 to 95% relative humidity. Temperature -10 oC ~5 oC, the maximum wind speed 15 m/s
Storage Conditions 0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,) temperature -10 oC ~30 oC(battery)
Weight

1.54kgs (without battery), 1.82kgs(including battery), including attachments

packing gross weight:5.38kgs

Corrosion resistance

Device components, spare parts and materials used meet corrosion requirements,

Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
ominymarket10offby

 fluid contamination from erosion

Size 150D X 130W X 126H (mm)
Packing New waterproof, drop, more than can be heavy 300kgs





Package:



Standard Package
No. Description Quantity Remark
1 Optical fiber fusion splicer 1
2 Power Adapter 1
3 AC power Line 1
4 Electrodes 1
5 Cooler 1
6 Stripper 1
7 Miller Clamp 1
8 Blowing Dust Ball with Brush 1
9 Specification 1
10 Optical Fiber Holders 1
11 Fiber Cleaver 1

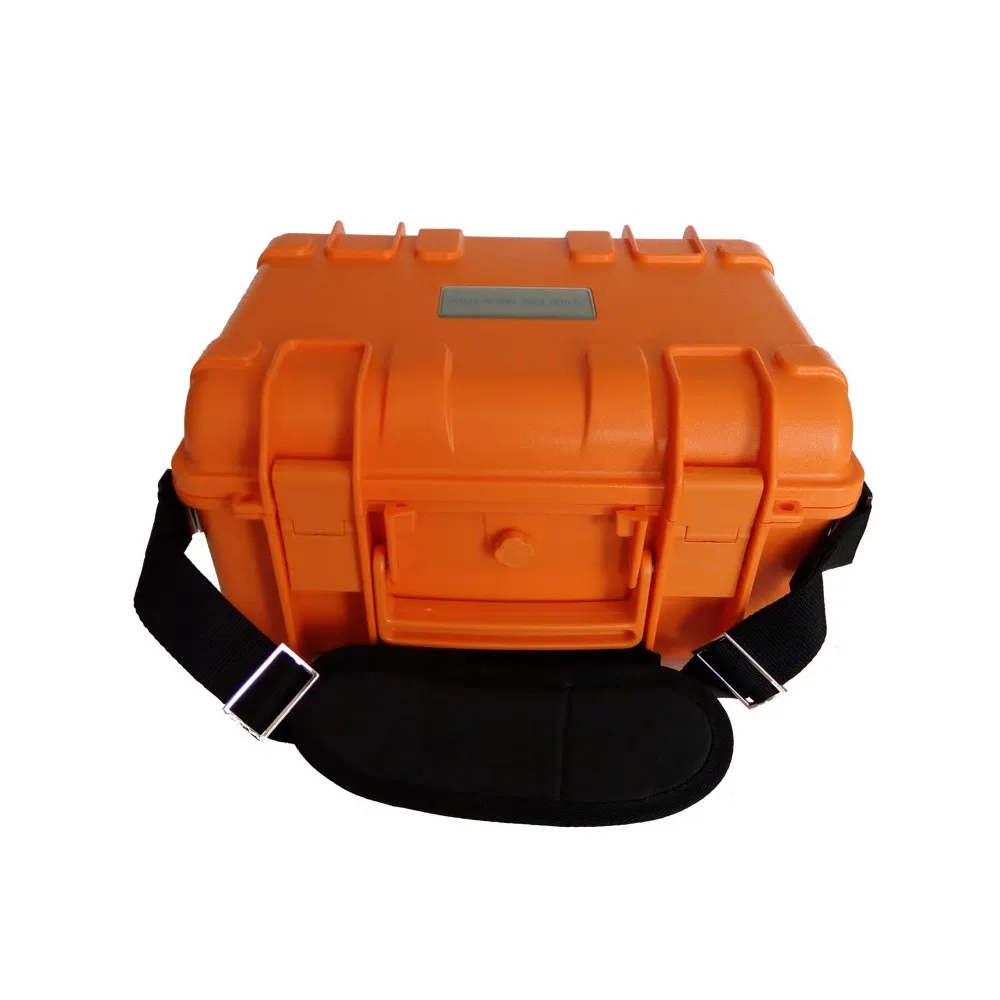

12 Carrying Bag 1
13 Configuration Checklist Table 1
