UNIKIT Wholesales FTTH ESC250D APC Single-Mode Fiber Optic SC APC Quick Fast Field Assembly Connector For Drop Cable

$128$283

Clear
Compare
Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
SKU: 32920011628 Category:


  • Brand Name: AUA
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Length: 1m
  • Compatible: TP-link
  • Fiber Type: Single Mode
  • Connector Type: SC/APC
  • Size: 20cmx20cmx20cm
  • Model Number: T01-04
  • Model Number: ESC250D SC APC
  • Package: 100pcs/pack

Recommended Products

Welcome to our shop, any question pls feel free to contact+86 15951880639(WhatsApp)

Wholesales PCS/Lot FTTH ESC250D SC APC Single-Mode Fiber…US$ 37.80

0.3dB FTTH fiber optic fast/quick connector SC UPC/SC AP…US$ 18.20

10PCS/bag SC/ APC-SC /UPC Simplex singlemode fiber optic…US$ 9.10

5PCS OM3 LC-LC UPC Multimode Duplex 2.0mm or 3.0MM Fiber…US$ 12.60

0.9mm Steel Tube Fiber Optic PLC Splitter 1×16 SC/APC Mi…US$ 45.50

NOVKER NK5600 1310/1550nm 32/30dB SM Optic Fiber OTDR…US$ 698.60

Fiber Optic Cleaner SC One Click Cleaner Fiber Optic Con…US$ 18.20

One Click Fiber Optic Connector Cleaner Pen For 1.25mm L…US$ 22.40

Fiber Optic MicroScope Connector Inspection Video optica…US$ 476.0

High Quality 0.3dB FTTH Fiber Optic Quick Connector FTTH…US$ 23.80

TMO-300-SM-B 1310/1550nm 32/30 SM Optic Fiber OTDR Teste…US$ $665.0

SC APC PLC 1X8 splitter Fiber Optical Box FTTH PLC Split…US$ $9.66

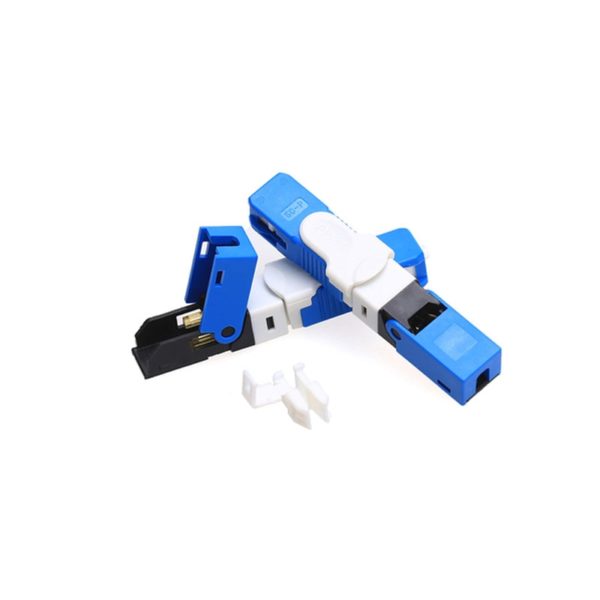

FTTH ESC250D APC Single-Mode Fiber Optic SC APC Quick Fast Field Assembly Connector

Features:

1. FTTH project usable

2. Field installable

3. Insert loss less than 0.3dB

4. Metal V-shape cavity work well in high and low temperature

5. Installation less than 1 minutes

6. Reliable and superior optical performance

Application:

1. Distribution frames

2. Maintenance or emergency restoration of fiber networks

3. Patch panels

4. FTTH Outlets

5. Field word

ITEM

Technical Parameters

Applicable for

Drop cable / Indoor cable

2.0mm, 3.0mm Drop Cable

Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!

Optical fiber diameter

SM(9/125), MM(50/125, 62.5/125)

125μm ( 657A & 657B )

Tight buffer diameter

250μm

Fiber mode

Single mode

Operation time

About 100s(no fiber cut)

Insert loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

> 50db(PC), > 55db(UPC), > 65db(APC)

Fastening strength of naked fiber

>5 N

Fastening strength of naked fiber holder

>10 N

Tensile strength

>50 N

Using temperature

-40~+75°C

On-line tensile strength (20 N)

IL ≤ 0.5dB  RL ≤ 5dB

Mechanical durability (500 times)

IL ≤ 0.5dB  RL ≤ 5dB





Color

100pcs APC, 200PCS APC, 300pcs APC, 100pcs UPC, 200pcs UPC, 300pcs UPC
