SKYCOM High Precision T-207H Multi-language Optical Fiber FTTH Fusion Splicer Fiber Optic Splicing Machine

$2294.99

98 in stock

Estimated shipping to Nigeria:
Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
Promotions
$9.99 OFF
$99.99 OFF
$79.99 OFF
$59.99 OFF
$39.99 OFF
$19.99 OFF
$4.99 OFF
10$ OFF
Minimum spend 50$ Maximum spend $
Unlimited time
Apply Coupon
100$ OFF
Minimum spend 1376$ Maximum spend $
Unlimited time
Apply Coupon
80$ OFF
Minimum spend 744$ Maximum spend $
Unlimited time
Apply Coupon
60$ OFF
Minimum spend 620$ Maximum spend $
Unlimited time
Apply Coupon
40$ OFF
Minimum spend 372$ Maximum spend $
Unlimited time
Apply Coupon
20$ OFF
Minimum spend 74$ Maximum spend $
Unlimited time
Apply Coupon
5$ OFF
Minimum spend 15$ Maximum spend $
Unlimited time
Apply Coupon

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.



  • Model Number: T-207H
  • Brand Name: SKYCOM
  • Applicable Fibers: SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series
  • Average Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
  • Splicing Program: 50 groups
  • Typical Splicing Time: 10 Seconds
  • Typical Heating Time: 30 Seconds
  • Protection Sleeve Length: 20mm,40mm,60mm
  • Language: Chinese , English,French, Portuguese, Spanish
  • Monitor: 5 inches high resolution LCD display
  • Optical Fiber Fixture: 3-in-1 cutting fixture
  • Splcing Mode: Auto ,Manual ,Full Auto

 SKYCOM High Precision T-207H Multi-language Optical Fiber FTTH Fusion Splicer Fiber Optic Splicing Machine



Features:



5 inches high Resolution colorful LCD display, image can be turned according to position
Average splice time: 10 second
Average tube-heat time: 30 second
Lithium battery: 8AH and up to 180 times of continuous splice and heat after fully charged
X or Y axis Separately views with 360 times magnification, or Simultaneously 300 times
Cutting-edge technology for image processing
New developed technology providing strong wind and dust resistance
Working mode: Auto & Manual &Full-Auto
USB Port
Storing 6,000 groups of latest splice results.
New technology of fiber core alignment, enhanced accuracy
New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber
Rubber-insulated wire cutting fixture(three in one: Rubber-insulated wire, fiber optic patch cord, bare fiber)
Convenient and Practical Fusion Splicer Carrying Case with the combination of tools



Specifications:



Applicable Fibers SM, MM, NZ-DS, EDF , Pigtail, Rubber-insulated series wire Series
Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss ≥60dB
Tension Test 2.0N(200gf)(Standard)
Typical splicing time 10sec
Typical heating time 30sec
Splicing Program 50 groups
Protection Sleeve Length 20mm, 40mm, 60mm
Language Chinese, English, French, Portuguese, Spanish
Environmental Conditions -10 to +50C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply

AC adaptor: 100-240V input voltage,  50/60Hz; 12V, 5A output voltage(DC)

Inner lithium battery: 11.1V, 6AH

Monitor 5 inches high resolution colorful LCD display
Fiber image magnification X or Y axis Separately views 400 times magnification, or Simultaneously 300 times
Storage of splice result 6,000 groups of splice results
Splicing Model Auto&Manual&Full Auto
Optical Fiber Fixture   3-in-1 cutting fixture
Dimensions 130(W)*135(D)*130(H)mm;                 Package size: 53*32*30cm
Weight 2.21kg+0.37kg (battery weight)=2.58kg;        Package G.W.: 8.68kg

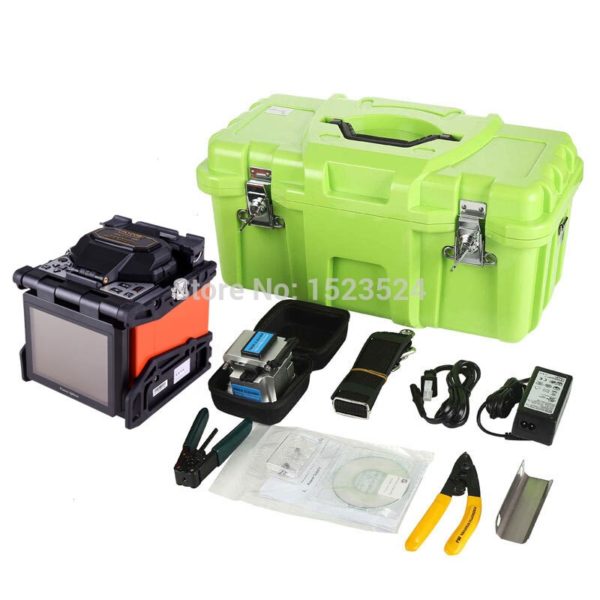

Standard Package:


No. Item Quantity
1 Machine (T-207) 1
2 Fiber Cleaver 1
3 Fiber Stripper 1
4 AC Adaptor 1
5 Battery 1
6 Charger 1
7 Spare Electrodes 1
8 Cooling Tray 1
9 Instruction CD 1
10 Quick Reference Guide 1
11 Rubber-insulated wire stripping pliers 1
12 Transit case with Carrying strap 1
