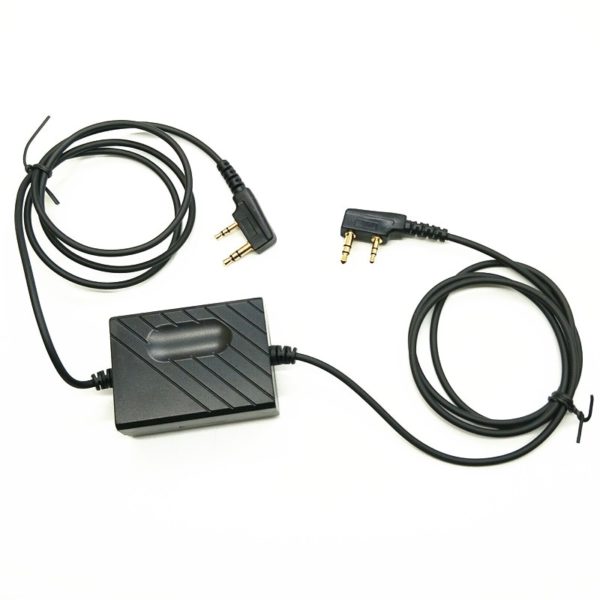

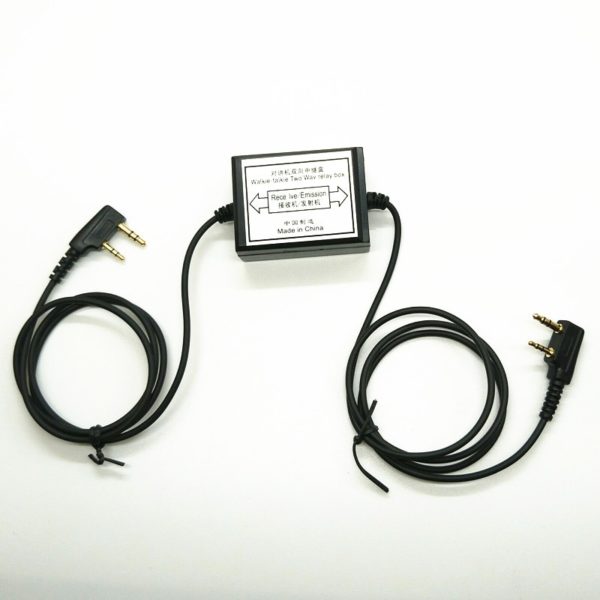

RPT-2K Two Way Relay Walkie Talkie Repeater Box For Two Handheld Radio Baofeng Wouxun Puxing K Port

$36

1842 in stock

Compare
Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
SKU: 32841259173 Category:


  • Type: Accessories
  • Maximum Range: 1.5km-3km
  • Frequency Range: Dual Band
  • Model Number: SD-1
  • Material: Plastic
  • Brand Name: BAOFENG
  • Dimensions: 190cm in total of 2 cables
  • Is_Display: Yes
  • Walkie Talkie Type: Repeater

wy-plugin-start

Hot Commodity

Yinitone RC-308 Two Way Radio Relay Walkie Talkie Repeater Box K Port For Two Handheld Radio Baofeng UV-5R BF-888S KENWOD TYT

$27.54 $28.99

Original BaoFeng UV-5R walkie taklie transceiver 5W VHF UHF Dual Band 136-174/400-520 MHz Ham CB FM two way radio Free earpiece

$27.54 $28.99

2PCS Two Way Radio Handy carry bag Carring case for Baofeng UV-5R 5RA 5RB 5RE TYT TH-F8 Walkie Talkie Case Bag Holder

$14.99

RPT-2K Two Way Relay Walkie Talkie Repeater Box For Two Handheld Radio Baofeng Wouxun Puxing K Port

$18.04 $18.99

Motorcycle Helmet Headset Microphone for YAESU Vertex VX-3R, VX-5R VX-400 VX-160 Radios with PTT 1 Pin 3.5mm

$18.04 $18.99

Original NA-771 Walkie Talkie Antenna SMA-F NA-771 For Portable Radio Handheld Baofeng UV-5R BF-888S UV-5RE UV-82 nagoya

$8.54 $8.99

Green Two way radio waterproof bag case for Motorola Kenwood Baofeng UV-5R UV-B2 Quansheng walkie talkie rainproof bag

$5.69 $5.99

Original USB Programming Cable Walkie Talkie Accessories For Baofeng UV-5R UV 5R Bf-888s UV-82 For Kenwood 3207 For PX 777 TYT

$4.74 $4.99

wy-plugin-end

RPT-2K Walkie Talkie two wav relay box for Kenwood BAOFENG Two Way Radio Receiver Type Vide 2 Transceivers DIY Repeater Station

 RPT-2K Two Way Relay Walkie Talkie Repeater Box For Two Handheld Radio Baofeng Wouxun Puxing Zastone  With K Port

Details :



 Repeater For 2PCS Handheld Radio Two-way Relay

YES

Cable Length

190cm in total of 2 cables

Color

Black as per picture

Connector

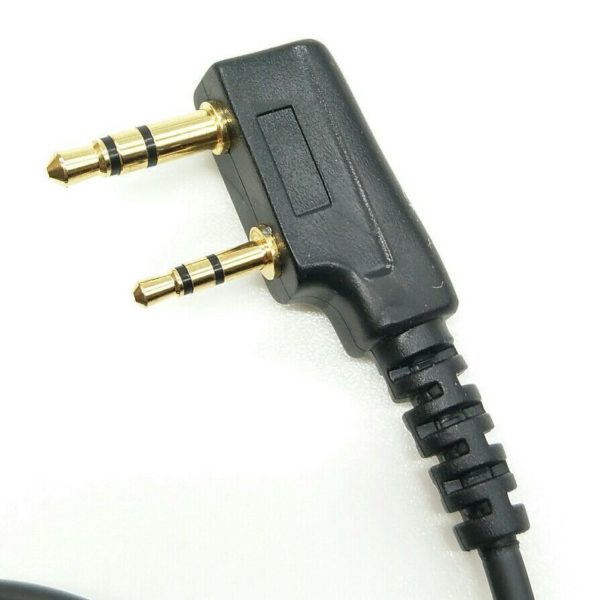

K Port For Kenwood and most brand radios with the same connector

 Feature



 Repeater Use For Walkie Talkie To Increase Talk Distance above 10KM

Two- way communication (receive and transfer )

 Install

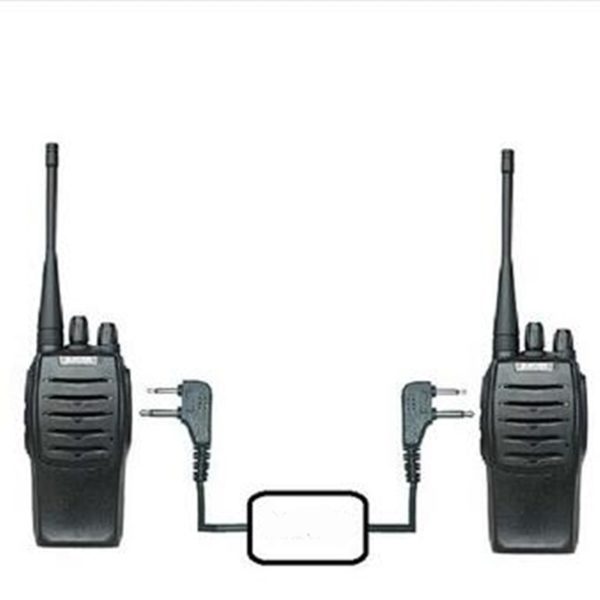

Two Handheld Two Way Radios connect with repeater through earphone plug, as show in picture

 Weight

 92g



Description:

Handheld radios used currently on the market for basic use rate in 400-470MHz, most of the power 5W, this walkie talkie in open call distance can reach 5-8 km, while in dense urban, but only a short distance of 1-2 km,  or less.  In order to have long-distance communication, we need a repeater. Standard repeaters have a high cost, and can be complicated to install, so there was a need for a simple and inexpensive repeater. The operation is very simple, and no  power supply needed, You do not need to change any part of the radio, All you need is just two handheld radios and connect the cables to the external mic/spk ports (2.5mm&3.5mm). using two handheld walkie talkie headset jack is composed of a very practical small relay station through the relay box.



Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!

Details :

Repeater For 2PCS Handheld Radio Two-way Relay: YES

Cable Length: 190cm in total of 2 cables

Color: Black as per picture

Connector: K Port For Kenwood and most brand radios with the same connector

Feature: Repeater Use For Walkie Talkie To Increase Talk Distance above 10KM, Two- way communication (receive and transfer )

Install: Two Handheld Two Way Radios connect with repeater through earphone plug, as show in picture

WeightL 92g



Working mode

1. The transponder downlink forwarding (differential and conventional relay station), a machine as a signal of uplink receiver, B machine as the signal downlink transmitter. Has reached the relay purposes.

2. Bidirectional forwarding, machine of a receiver, B machine emission. B machine to receive, machine of an emission. To achieve bidirectional forwarding function.

3. The relay box for audio trigger mode, when in use, the as received signal walkie talkie at full volume!



The scope of application:

1. The link between the relay station and relay station

2. Relay station signal coverage area of signal extension

3. The field construction of cable erection

4. Underground mine

5. Cave construction

6. Culvert emergency rescue

7. V-U cross section relay

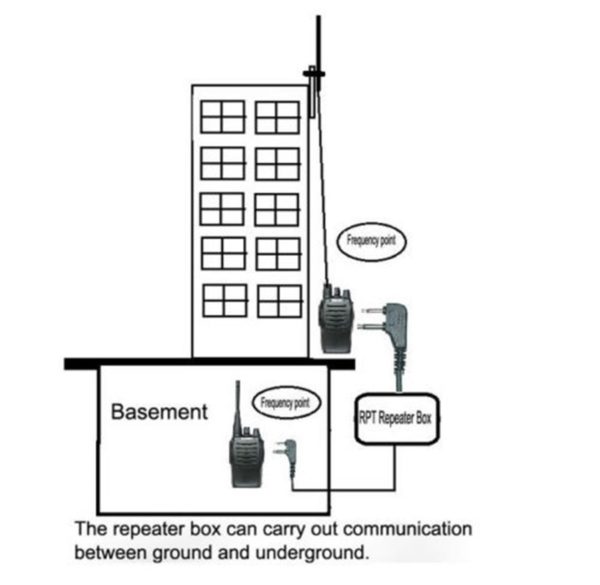

8. Small basement and ground walkie talkie signal connection

9. Large activities and other occasions emergency use!



Antenna / diplexer installed applications

1. Unique multiplexer: two handheld computer connected to a relay station, such as the peerless multiplexer, two hand should be separately using two antenna! The two antenna should be erected vertically! And between the two of them try to distance! At least not less than 5 metres! (two walkie talkie antenna avoid parallel erection!)

2. A duplexer: purchase the corresponding frequency / power duplexer, with "on the joint" two handset antenna output terminal respectively docking to the duplexer transmitting and receiving end, set the players holding table corresponding frequency (frequency should be consistent with the duplexer). A duplexer case, relay station as long as the need to connect to an antenna! And erecting the antenna has no special attention! Just try to please!

3. Recommend using the duplexer, because a duplexer relay stations when the antenna is no special requirements! As long as the height is enough to.

4. Recommend the use of "original Kenwood" or "Motorola" brand walkie talkie"! As a result of the customer to use domestic non-standard walkie talkie and cause the relay box not work! Nonself at products, responsible for the consequences from customers!



Single / two way relay box frequency set prompt

1. The one-way relay box forwarding mode (conventional relay station mode)! A machine receives the signal, the B machine transmission signal. Sending / receiving machine must be set to two different frequencies, the frequency is higher than the conventional transmitter set receiver frequency, and high / lower, high / low frequency difference of the 10M, the frequency difference is bigger is better.

2. The one-way relay box in the process of using the jack do not reverse connection, otherwise this trunk box will not work.

3. Bidirectional relay box plug does not divide the input / output, two-way relay box forwarding mode: A machine receives the B emission, B emission machine to receive A.



The matters needing attention

1. The relay box for audio trigger mode, so when you use the walkie talkie volume to your maximum, otherwise may appear not to send state.

2. Such as transmission delay time is too long (more than 3 seconds), conventional because walkie talkie transmit antenna near the trunk box too close to cause the transmitted signal interference caused by relay box! Can be used to solve the problem of interference of external interphone antenna!



Package included:

1PCS X RPT-2K Walkie-talkie Two Wav Relay Box
