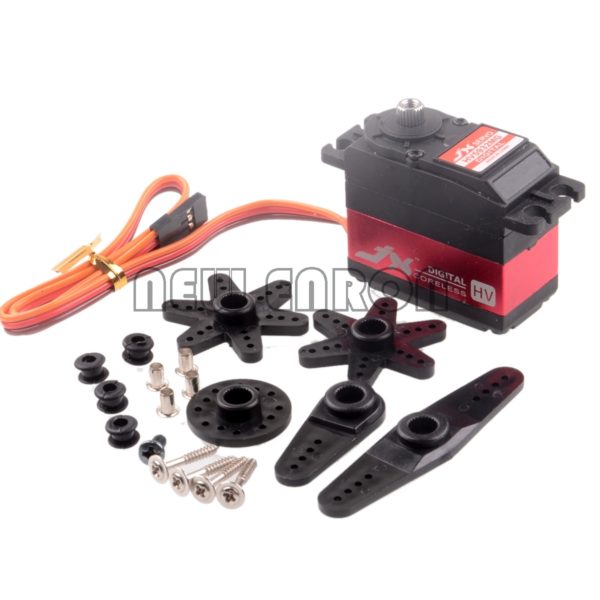

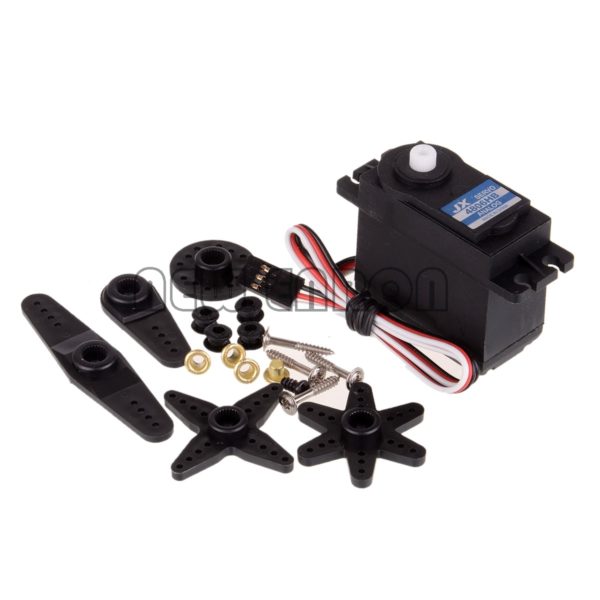

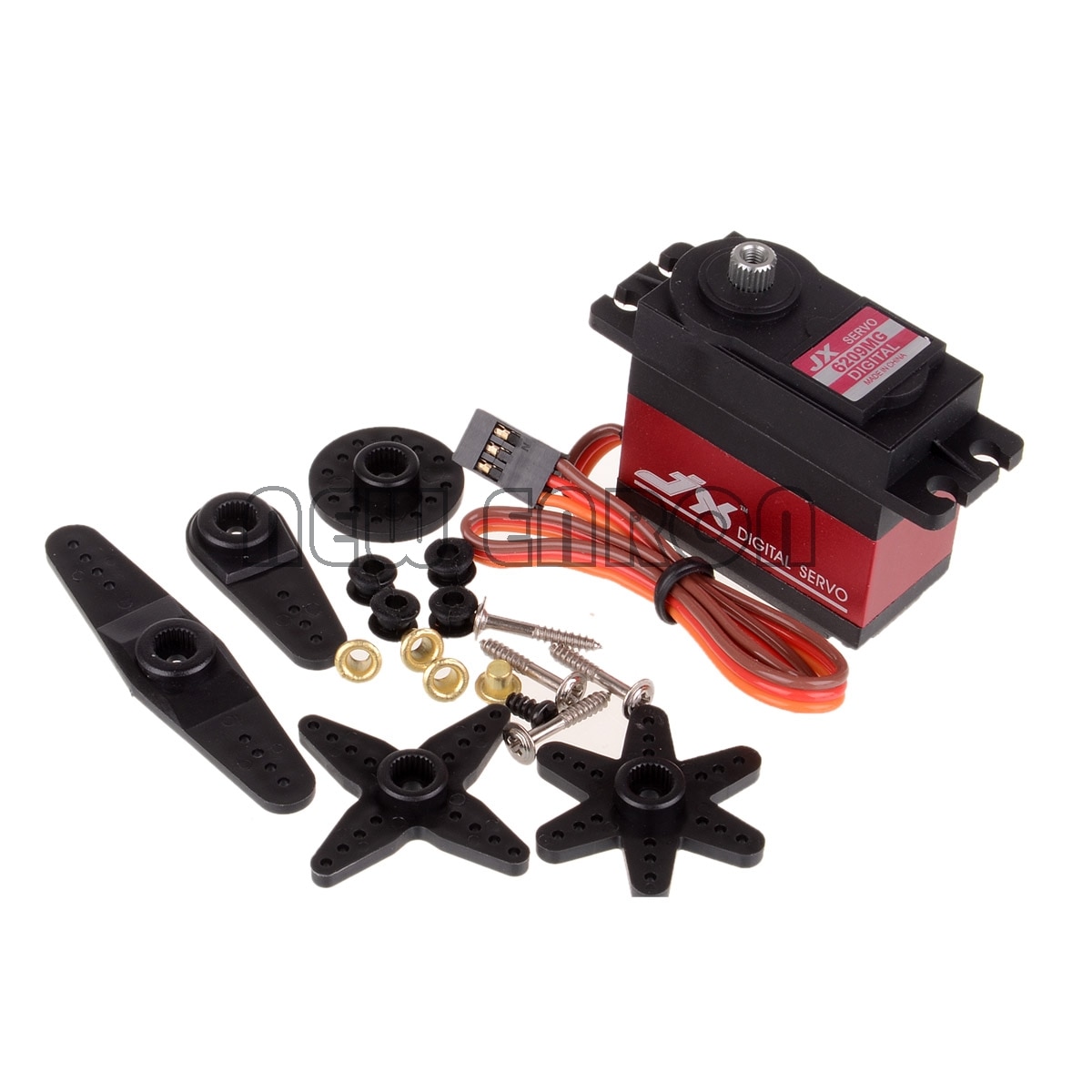

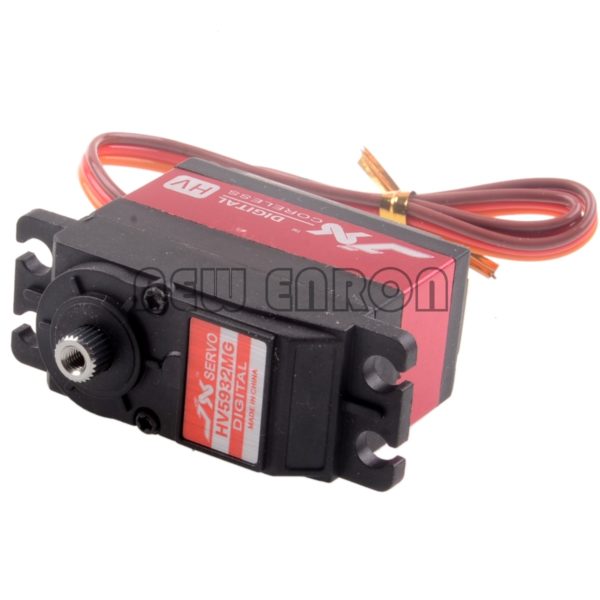

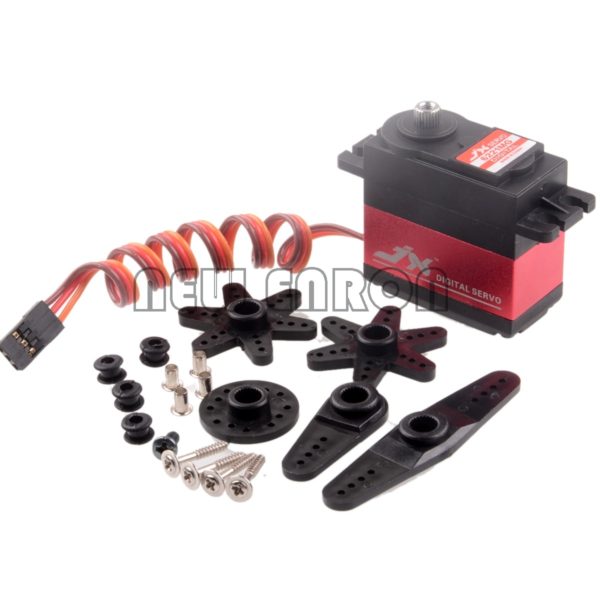

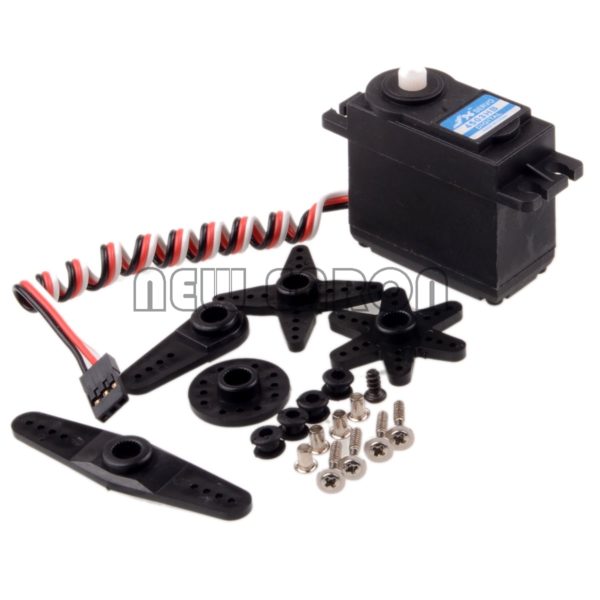

NEW ENRON RC JX Digital Servo Steering Arms (6KG,9KG,15KG,20KG,30KG) FOR RC MODEL CAR

$17.8000$55.8600

Clear
Estimated shipping to your country:
  Ask a Question
Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
SKU: 4000010756830 Categories: ,


  • Brand Name: NEW ENRON
  • Material: Composite Material
  • Technical parameters: Value 2
  • Wheelbase: Screws
  • Size: 6KG,9KG,15KG,20KG,30KG)
  • Model Number: JX-SERVO
  • For Vehicle Type: Cars
  • Tool Supplies: Assembled class
  • Remote Control Peripherals/Devices: Servo
  • Use: Vehicles & Remote Control Toys
  • Upgrade Parts/Accessories: Servo
  • Four-wheel Drive Attributes: Assemblage
  • RC Parts & Accs: Servo

100% Brand New

Stall Torque : 6KG/9KG/15KG/20KG/30KG

Part Name: Digital Servo

Color:As Pictures

Please refer to your instruction for the part number and picture

Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!

Content: what you choose in the picture is what you get

6KG Specification
Dead band: 2μsl
Operating frequency: 1520μs / 330hz
Operating voltage: DC4.8 ~ 6.0 V
Operating Speed: (4.8V): 0.14sec / 60°
Operating Speed:(6V): 0.12 sec / 60°
Stall Torque: (4.8V): 5.56kg.cm (72.23oz / in)
Stall Torque: (6.0V): 6.21 kg.cm (86.26 oz / in)
Weight:48.5g

9KG Specification
Dead band: 2μsl
Operating voltage: DC4.8 ~ 6.0 V
Operating Speed(4.8V):0.15sec/ 60
°
Operating Speed(6V):0.13sec/ 60°
Stall Torque(4.8V):8.65kg-cm (120.15 oz/in)
Stall Torque(6V):9.35kg-cm(129.88 oz/in)
Weight:62g

15KG Specification
Dead band: 2μsl
Operating voltage: DC4.8 ~ 6.0 V
Operating Speed(4.8V):0.18sec/85°
Operating Speed(6V):0.16sec/85°
Stall Torque(4.8V):14.25kg-cm (197.93 oz/in)
Stall Torque(6V):15.32kg-cm (212.79 oz/in)
Weight:62g

20KG Specification
Dead band: 2μsl
Operating voltage: DC4.8 ~ 6.0 V
Operating Speed(4.8V):0.18sec/60°
Operating Speed(6V):0.16sec/60°
Stall Torque(4.8V):17.25kg-cm(239.55 oz/in)
Stall Torque(6V):20.32kg-cm(281.89 oz/in)
Weight:62g

30KG Specification
Dead band: 1μsl
Operating voltage: DC 6.0 ~ 8.4 V
Operating Speed(6V):0.12sec/60°
Operating Speed(8.4V):0.1sec/60°
Stall Torque(6V):25.2kg-cm
Stall Torque(8.4V):32.3kg-cm
Weight:59g



Color

3KG, 6KG, 9KG, 15KG, 20KG, 30KG
