2sets SV6500 433MHz DB9/RS232 Interface 5W 8km Ultra Long Distance & Highly-integrated Uart RF Module|RF Transceiver Module

$217.9999

992 in stock

Estimated shipping to Nigeria:
Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
SKU: 32391094840 Categories: , ,
Promotions
10$ OFF
100$ OFF
80$ OFF
60$ OFF
40$ OFF
10$ OFF
Minimum spend 50$ Maximum spend $
Never expire
100$ OFF
Minimum spend 1376$ Maximum spend $
Never expire
80$ OFF
Minimum spend 744$ Maximum spend $
Never expire
60$ OFF
Minimum spend 620$ Maximum spend $
Never expire
40$ OFF
Minimum spend 372$ Maximum spend $
Never expire
  • Brand Name: G-NiceRF
  • Item Type: 5W RF Module
  • Model Number: SV6500
  • Frequency:: 433/470 MHz
  • Interface:: TTL/RS232/RS485
  • Max output power:: 5W / 37 dBm
  • Working voltage:: 9~30.0V
  • Working temperature:: -40 ~ 85 °C
  • Weight:: 160 g
  • Air Data Rate:: 1200 ~ 115200 bps
  • Series Data Rate:: 1200 ~ 115200 bps
  • Sensitivity:: -121 dBm
  • Channels: 40 channels



2sets SV6500 433MHz DB9/RS232 Interface 5W 8km Ultra Long Distance & Highly-integrated Uart RF Module|RF Transceiver Module





Overview

SV6500 is an ultra long distance & highly-integrated RF transceiver module, which adopts high performance Si4432 from Silicon Labs. It has 3 optional Interface (TTL, 232, 485). SV6500 has high sensitivity and 5W output power to achieve long RF range and reliable RF communication. SV6500 comes with many parameters which are configurable, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer's own device. The features of long distance, wide working voltage and simple parameters     configuration make SV6500 wildly used in many fields.



Feature

  • Frequency:433/470 MHz
  • Industrial class
  • 40 channels
  • 4 bytes Net ID & 2 bytes Node ID
  • Series Data Rate:1200 ~ 115200 bps
  • Air Data Rate:1200 ~ 115200 bps
  • GFSK modulation
  • RSSI
  • Parameters save automatically
  • Interface: TTL/RS232/RS485
  • Bi-directional & Half duplex
  • Sensitivity:-121 dBm
  • Max output power:5W /+37 dBm
  • Working voltage:9~30.0V
  • Working temperature:-40 ~ +85 °C
  • Weight:160 g

Application
  • Remote control telemetry
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control
  • Wireless PC peripherals



Application circuit

The typical schematic circuit is as below

NOTE: The ground pin of the module and device should be connected together.

           7. Application circuit



Typical application:

    Typical application





Electrical Characteristics

5. Electrical Characteristics



Mechanical dimension

10. Mechanical dimension

Get 10$ Off your Total Order Now! Make An Order Now Before This Offer Ends!
ominymarket10offby

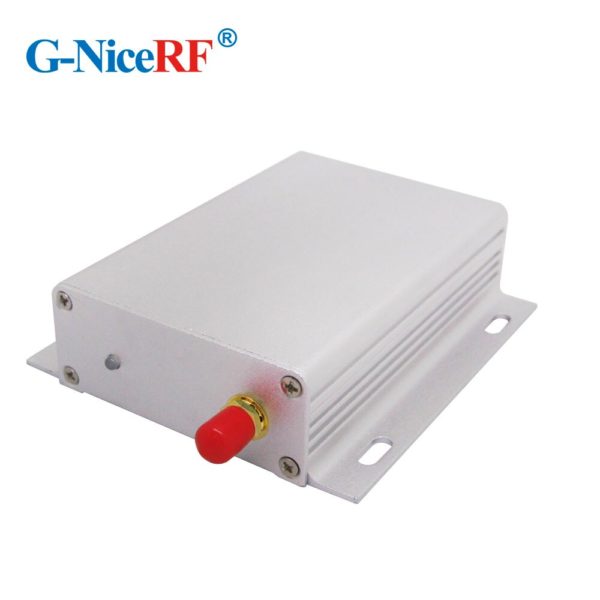

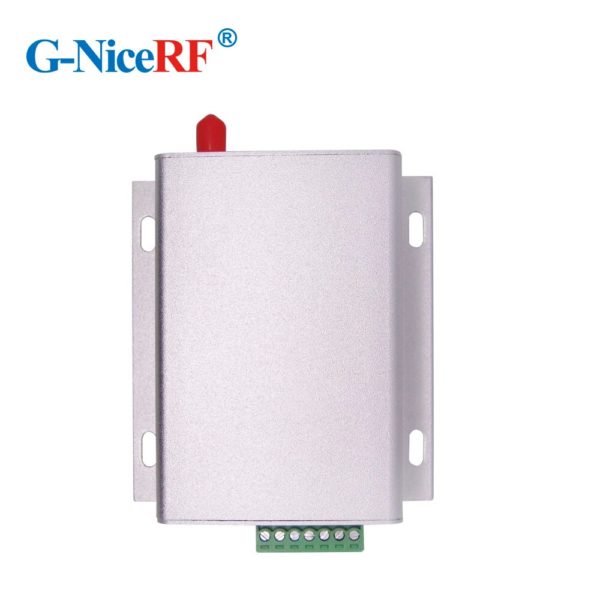

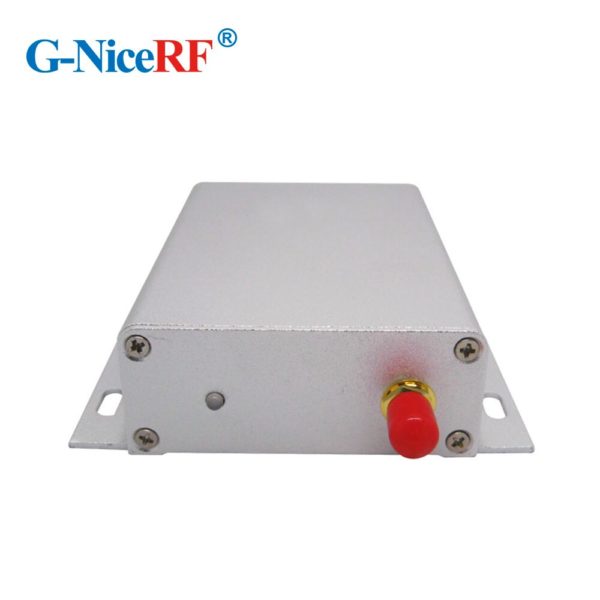

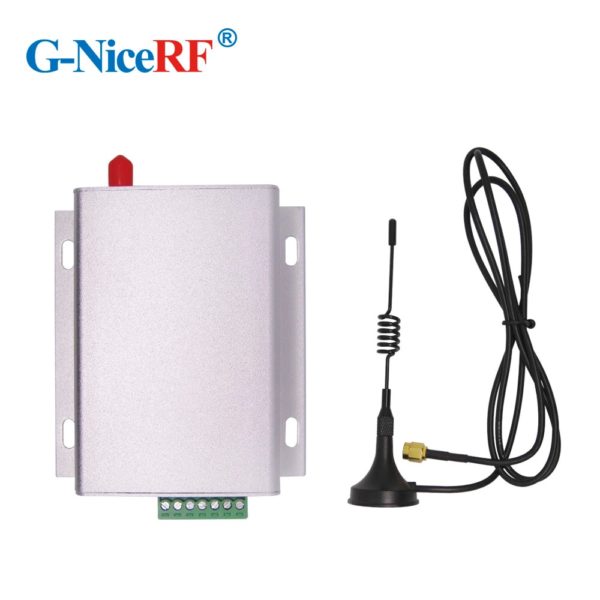

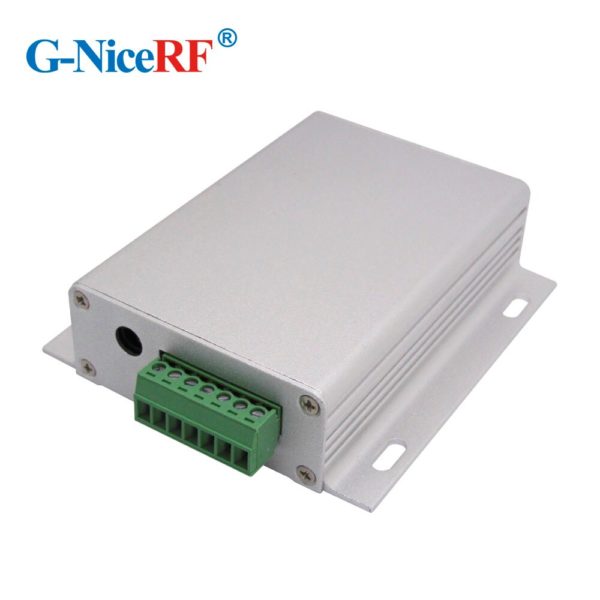

Product show:



SV6500-Kit-1

SV6500-3

SV6500-2

SV6500-1

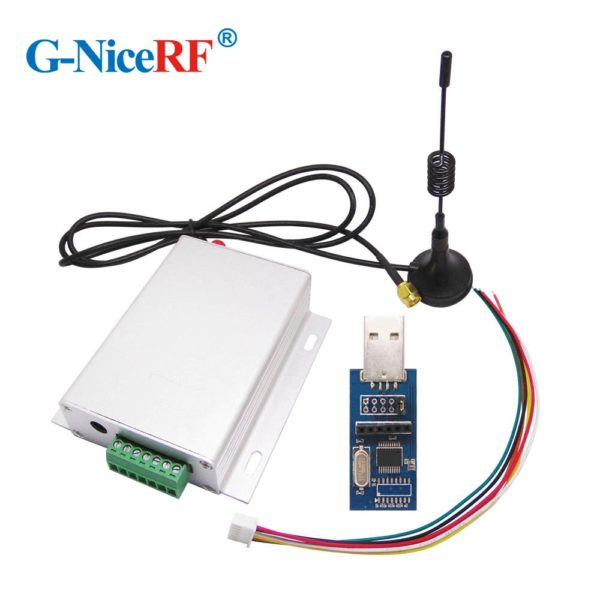

What does include in the package:

  • 2pcs SV6500 433MHz RS232 Interface
  • 2pcs Sucker Antenna
  • 2pcs Power supply
  • 2pcs RS232 USB Brigde Board



Pin definition:

8. Pin definition

22



Accessories

1) Antenna

The antenna is important in the communication. For this module,We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.

       33



2) USB Bridge Board

The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC. There are 3 types of USB Bridge, which are SU108-TTL, SU108-232, SU108 – 485. SU108 -TTL is for TTL Interface, SU108-232 is for 232 Interface, SU108 – 485 is for 485 Interface:





           44
